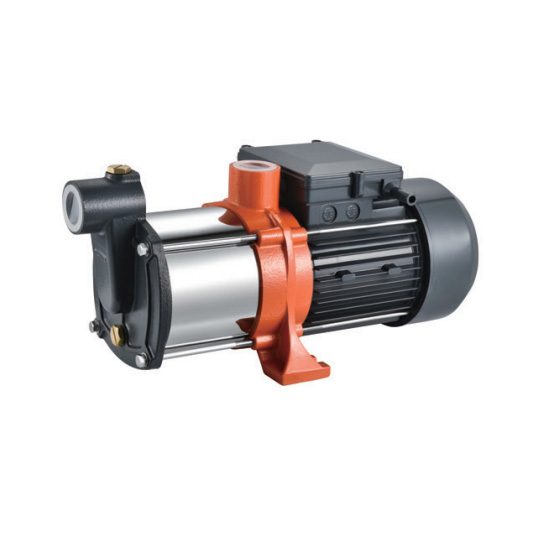

XMH(2m³/H)
Pump body: Cast iron + Stainless steel
Pump support: Cast iron
Motor housing: Aluminum
Impeller: AISI304 SS, PPO if request
Motor shaft: AISI304 SS
Mechanical seal: SIC/Graphite
Application
Suitable for use with clean water even where air is presentand with liquids that are not chemically aggressive towardsthe materials from which the pump is made.
The pumps are designed to pump water even in caseswhere air is present. As a result of their quietness, reliabilityand low energy consumption they are recommended foruse in domestic and civil applications such as the pressu-risation and distribution of water in combination with pressuresets, and in rain water recovery and irrigation systems, etc.The pump should be installed in an enclosed environment,or at least sheltered from inclement weather.
Motor
※Two-pole induction motor(n=2850r.p.m)
※Insulation Class B
※Protection IP44
※Continuous service S1
※Thermal protector for single phase
※Single-phase 220V/50Hz, 60Hz if requestThree-phase 380V/50Hz, 60Hz if request
Operating conditions
※Liquid temperature up to 60℃
※Ambient temperature up to 40℃
※Total suction lift up to 8m
