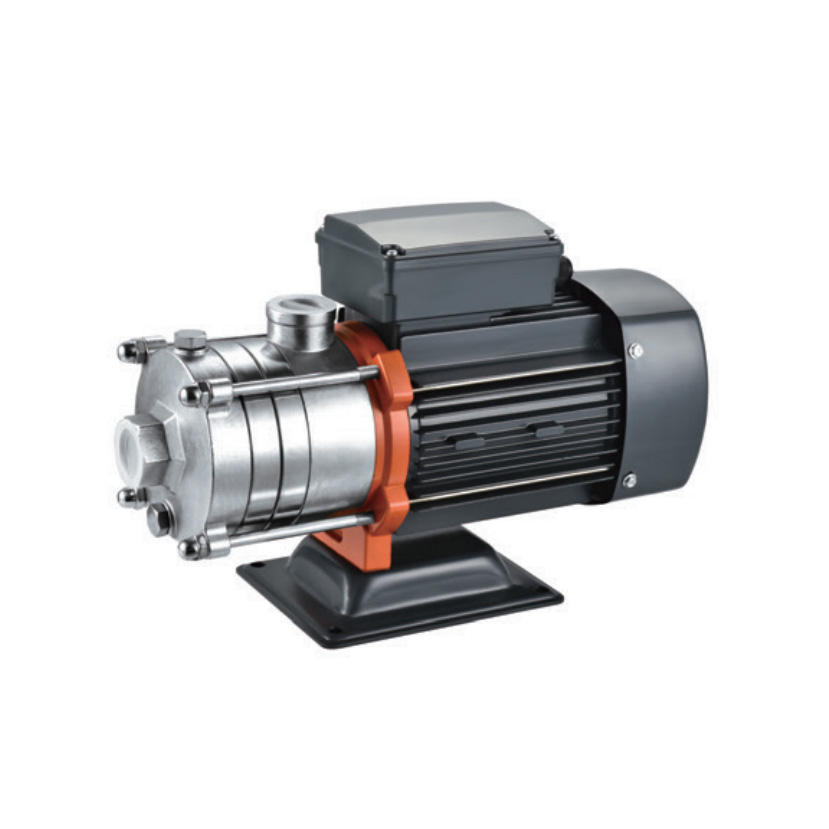

XCM/XCH(2m³/H)
Pump body: AISI304 SS
Pump support: Aluminum
Motor housing: Aluminum
Impeller: Brass, AlSI304 SS if request
Diffuser: Noryl
Motor shaft: AISI304 SSS
Mechanical seal: SIC / Graphite
Application
Suitable for use with clean water and liquids that are notchemically aggressive towards the materials from whichthe pump is made.
The self-priming jet pumps are designed to pump watereven in cases where air is present. As a result of theirreliability and the fact that they are easy to use, they arerecommended for use in domestic applications such asthe distribution of water in combination with small or mediumsized pressure setsand for the irrigation of gardens andallotments, etc.
The pump should be installed in an enclosed environmentor at least sheltered from inclement weather.
Motor
※Two-pole induction motor(n=2850 r.p.m)
※Insulation Class B
※Protection IP44
※Continuous service S1
※Thermal protector for single phase
※Single-phase 220V/50Hz,60Hzif requestThree-phase 380V/50Hz, 60Hz if request
Operating conditions
※Liquid temperature up to 60℃
Ambient temperature up to 40℃
※ Total suction lift up to 9m
