APPLICATION
Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
Suitable for industrial use and urban water supply, pressure boosting for high buildings and fire fighting, garden irrigation, long-distance water transfer, heating ventilation and air conditioning,circulation and pressure boosting for cold and hot water, and supporting equipment etc.
PUMP
Cast iron pump body and support under special anti-rust treatment.

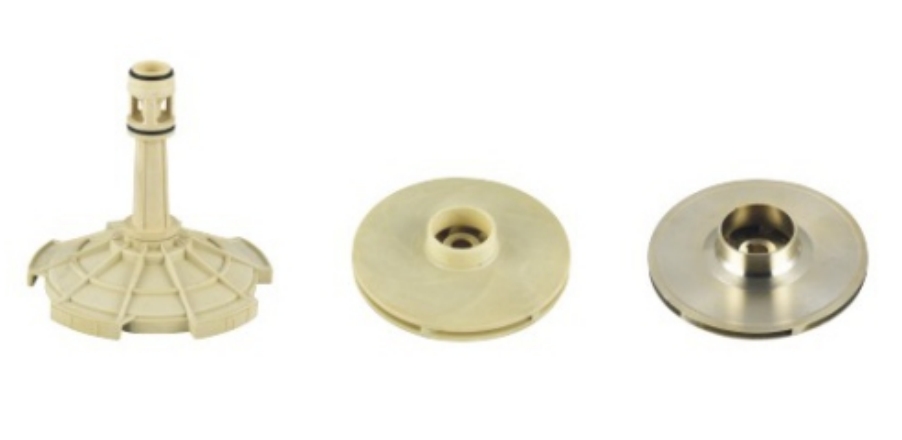

Brass / Stainless steel / PPO impeller
AISI 304 shaft
Max. Liquid temperature:+60℃
MOTOR
C&U Bearing
Motor with copper winding
Built-in thermal protector for single phase motor
Insulation class:B/F
Protection class :IP44/IP54
Max. Ambient temperature+40℃

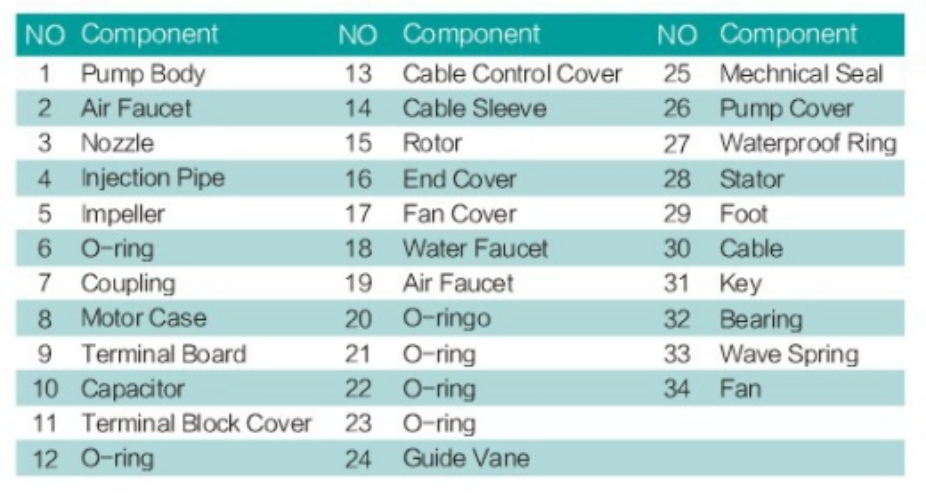

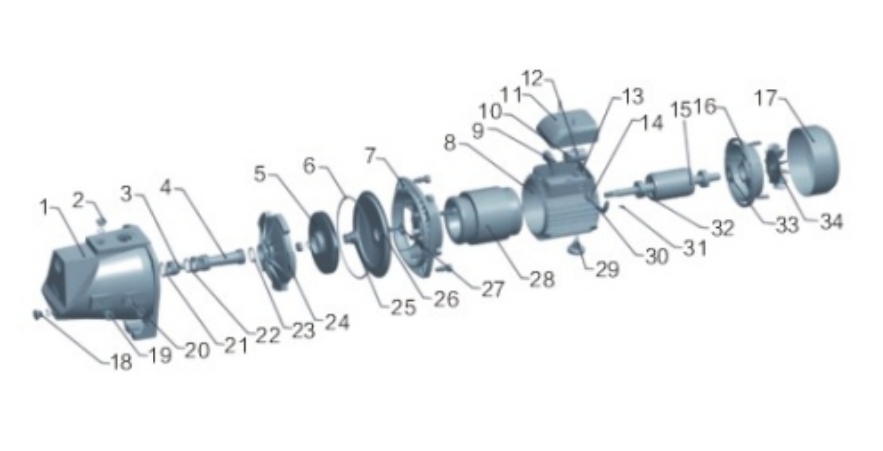

EXPLOSION PATTERN

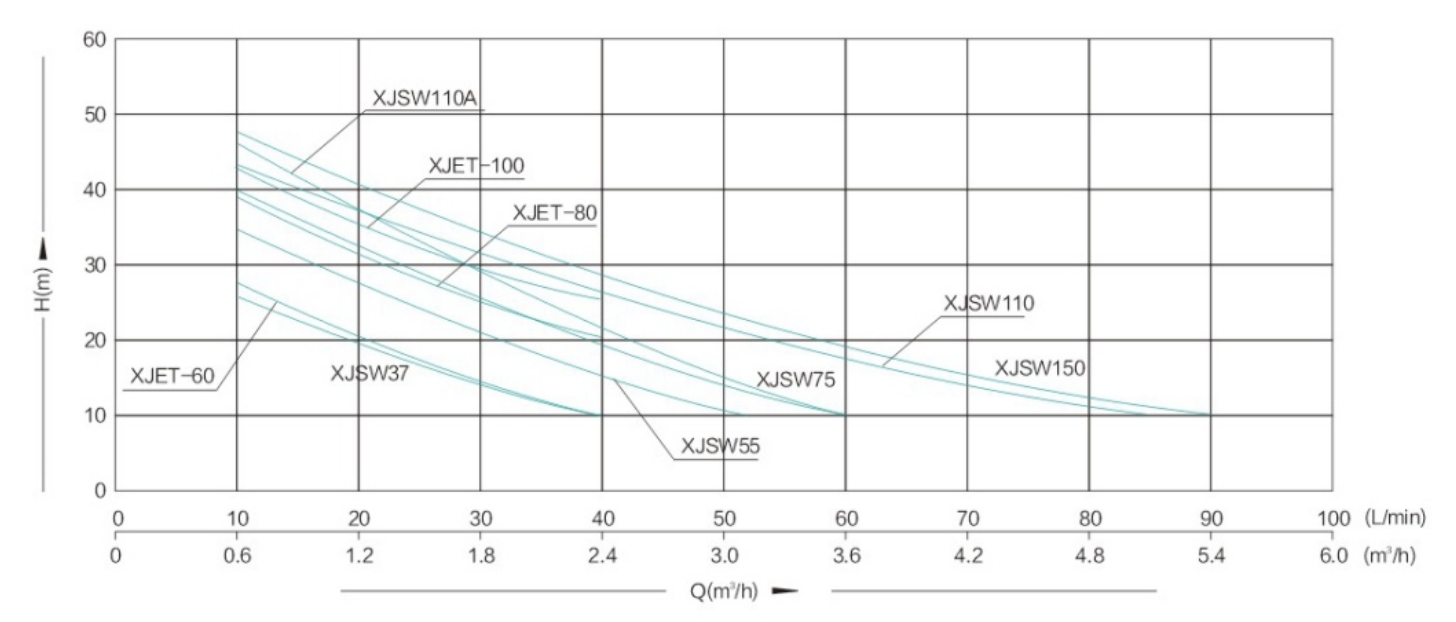

HYDRAULIC PERFORMANCE CURVES
