APPLICATION
Can be used to transfer clean water or other liquids similar to water in physical and chemical properties
Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
PUMP
Cast iron pump body and support under special anti-rust treatment.
Brass / Stainless steel / PPO impeller
AISI 304 shaft
Max. Liquid temperature:+60℃
MOTOR
C&U Bearing
Motor with copper winding
Built-in thermal protector for single phase motor
Insulation class :B/F
Protection class :IP44/IP54
Max. Ambient temperature+40℃

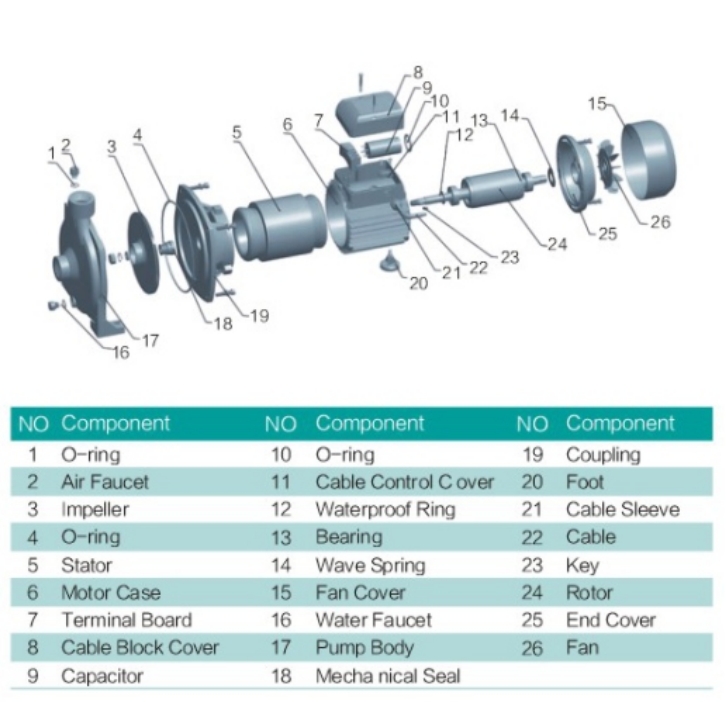

EXPLOSION PATTERN

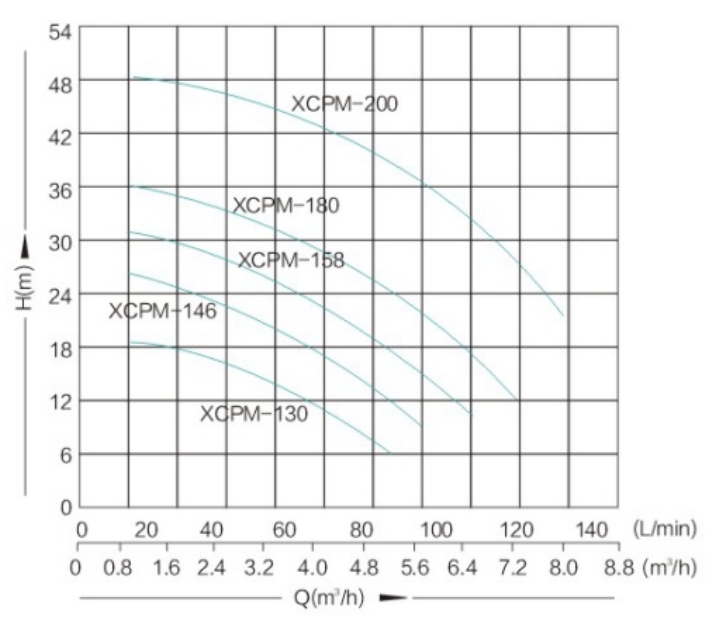

HYDRAULIC PERFORMANCE CURVES
