XST Standard Centrifugal Pump
Application
Circulation and transfer of clean,chemically non-aggressive water and other liquids.
Water supply & irrigation.
Water circulation in air conditioning systems.
Fire fighting system
Operating Conditions.
Delivery:up to 210 m3/h.
Head:up to 95m.
Liquid temperature:Standard -10Cto 85C.
Maximum operating pressure:12 bar(Pn12)
Anti-clockwise rotation when facing pump'ssuction port.
Impeller:AlSl304,Ht200
Mechanical seal in compliance with DIN24960.
Lubricated by internal recirculating pumped liquid.
Counter flange available on request
Motor
.Closed construction,external ventilation. Insulation class: F.Enclosures class:lp54
.Performance in compliance with CEl2-3(IC34.1)
.Max.ambient temperature:+40C
.Overload protection
.For model that 9.2kw: Equiped with IE2 motor, IE3motoravailable on request
.For model that 7.5kw, the following 4 models can equiped withlE3 motor.(XST40-160/30,XST40-160/40,XST50-160/55.XST50-160/75)

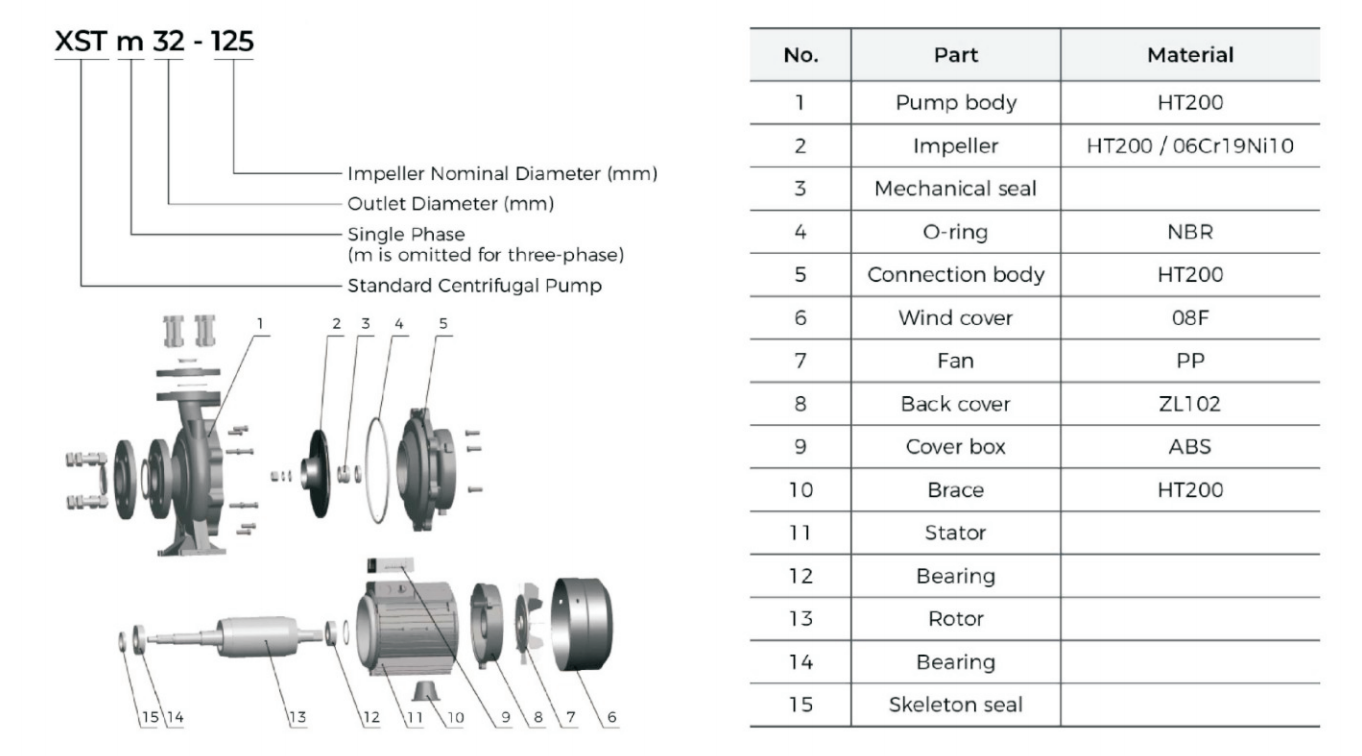

Construction Features
.Single- impeller centrifugal pump featuring axial intake andradial discharge
Inlet and outlet DNin compliancewith EN733(ex DIN24255)and UNl 7467.
Flanges in compliance with UNl 2236 and DIN2532Rear entry(impeller,motor can be extracted without disconnecting the pump body from the pipes)
| 型号 | 功率 | l/min | 流量=DELIVERY | |||||||||||||||||||
| 0 | 100 | 150 | 250 | 300 | 400 | 450 | 600 | 700 | 800 | 900 | 1200 | 1400 | 1500 | 1800 | 2000 | 2300 | 3000 | 3500 | ||||
| KW | HP | m³/h | 0 | 6 | 9 | 15 | 18 | 24 | 27 | 36 | 42 | 48 | 54 | 72 | 84 | 90 | 108 | 120 | 138 | 180 | 210 | |
| XST32-125/07✮ | 0.75 | 1 | H(m) | 17.5 | 16.7 | 15 | 12 | 9 | ||||||||||||||
| XST32-125/11✮ | 1.1 | 1.5 | 22 | 21 | 19.7 | 16.5 | 14.5 | 9 | ||||||||||||||
| XST32-160/15✮ | 1.5 | 2 | 25.4 | 23.7 | 22.5 | 18.5 | 15.8 | |||||||||||||||
| XST32-160/22✮ | 2.2 | 3 | 31 | 29.6 | 28.5 | 24.5 | 22 | 15 | ||||||||||||||
| XST32-160/30✮ | 3 | 4 | 35 | 34.3 | 34 | 28 | 25.5 | 19 | ||||||||||||||
| XST32-200/30✮ | 3 | 4 | 44.2 | 43 | 39.8 | 35.2 | 32.2 | 24.6 | ||||||||||||||
| XST32-200/40✮ | 4 | 5.5 | 54.5 | 52 | 50 | 45.5 | 41.9 | 35 | ||||||||||||||
| XST32-250/55✮ | 5.5 | 7.5 | 79.5 | 74.7 | 71.8 | 63 | 56 | 37.5 | ||||||||||||||
| XST32-250/75✮ | 7.5 | 10 | 99.5 | 95 | 91.8 | 83 | 76 | 57.8 | ||||||||||||||
| XST40-125/11 | 1.1 | 1.5 | 14.7 | 13.5 | 11.5 | 10.1 | 5.8 | |||||||||||||||
| XST40-125/15 | 1.5 | 2 | 18.1 | 17 | 15 | 13.9 | 9.6 | 6 | ||||||||||||||
| XST40-125/22 | 2.2 | 3 | 24.5 | 23.2 | 21.5 | 20.2 | 16 | 13 | 8.3 | |||||||||||||
| XST40-160/30 | 3 | 4 | 31.8 | 29.5 | 27.5 | 26.3 | 21.5 | 17.5 | ||||||||||||||
| XST40-160/40 | 4 | 5.5 | 38 | 36 | 34 | 33 | 28.5 | 25 | 20.1 | |||||||||||||
| XST40-200/55✮ | 5.5 | 7.5 | 46 | 43.8 | 41.3 | 40.1 | 35 | 30 | ||||||||||||||
| XST40-200/75✮ | 7.5 | 10 | 57 | 53.6 | 51.5 | 50 | 45 | 41 | 36.5 | |||||||||||||
| XST40-250/92✮ | 9.2 | 12.5 | 64 | 59 | 56.5 | 55 | 49.5 | 45 | 39.8 | |||||||||||||
| XST40-250/110✮ | 11 | 15 | 72 | 67.5 | 65 | 63.5 | 57.5 | 52.2 | 47 | |||||||||||||
| XST40-250/150✮ | 15 | 20 | 84.5 | 80 | 77.3 | 75.2 | 71 | 65 | 61 | |||||||||||||
| XST50-125/22 | 22 | 3 | 17 | 15.4 | 14 | 12.8 | 11.5 | 6.5 | ||||||||||||||
| XST50-125/30 | 3 | 4 | 20 | 18.8 | 18 | 17 | 15.6 | 11 | ||||||||||||||
| XST50-125/40 | 4 | 5.5 | 24 | 23.1 | 23 | 21.5 | 20.3 | 15.8 | 11.8 | |||||||||||||
| XST50-160/55 | 5.5 | 7.5 | 32 | 30.6 | 30 | 28 | 26.6 | 20.5 | 14.8 | |||||||||||||
| XST50-160/75 | 7.5 | 10 | 40 | 38 | 37 | 36 | 34.4 | 29 | 24 | |||||||||||||
| XST50-200/92✮ | 9.2 | 12.5 | 50.5 | 46.8 | 45 | 43 | 40.9 | 32.5 | 25.7 | 21 | ||||||||||||
| XST50-200/110✮ | 11 | 15 | 57.5 | 53.5 | 52 | 50 | 47.5 | 40 | 33 | 29 | ||||||||||||
| XST50-250/150✮ | 15 | 20 | 68.5 | 64 | 63 | 61.5 | 59 | 50 | 41 | |||||||||||||
| XST50-250/185✮ | 18.5 | 25 | 77 | 73.2 | 72 | 70 | 68 | 60.5 | 51.5 | 47 | ||||||||||||
| XST50-250/220✮ | 22 | 30 | 86.3 | 83 | 81.5 | 80.8 | 78.7 | 70 | 61.9 | 57 | ||||||||||||
| XST65-125/40 | 4 | 5.5 | 19 | 17.3 | 16.8 | 14.5 | 13 | 11.8 | ||||||||||||||
| XST65-125/55 | 5.5 | 7.5 | 23 | 21.3 | 20.9 | 19 | 17.5 | 16.7 | 13.7 | |||||||||||||
| XST65-125/75 | 7.5 | 10 | 27 | 26 | 25.6 | 24.5 | 23 | 22.5 | 20 | 18 | ||||||||||||
| XST65-160/92 | 9.2 | 12.5 | 33 | 31.5 | 30 | 28 | 27.1 | 24 | 21.5 | |||||||||||||
| XST65-160/110 | 11 | 15 | 36 | 34.5 | 33 | 31.5 | 30.8 | 28 | 25.5 | |||||||||||||
| XST65-160/150 | 15 | 20 | 42 | 41 | 40 | 38.5 | 37.8 | 35 | 33 | |||||||||||||
| XST65-200/150 | 15 | 20 | 45 | 45.5 | 43 | 41 | 40.2 | 36.5 | 34 | |||||||||||||
| XST65-200/185 | 18.5 | 25 | 52 | 52.3 | 51 | 49 | 48.2 | 44.5 | 42 | |||||||||||||
| XST65-200/220 | 22 | 30 | 59 | 59.5 | 58 | 56 | 55 | 52 | 49.5 | 44.5 | ||||||||||||
| XST65-250/220 | 22 | 30 | 62 | 61.5 | 58.2 | 56.5 | 54 | 49 | 45 | |||||||||||||
| XST65-250/300 | 30 | 40 | 76 | 75 | 73 | 71.5 | 69.5 | 64.5 | 61.5 | 54 | ||||||||||||
| XST65-250/370 | 37 | 50 | 90 | 88.3 | 86.5 | 84 | 83 | 78 | 75 | 68 | ||||||||||||
| XST80-160/110 | 11 | 15 | 27 | 27.3 | 26 | 24.5 | 22.5 | 16 | ||||||||||||||
| XST80-160/150 | 15 | 20 | 32.8 | 32.5 | 31.3 | 30.2 | 28.5 | 22.1 | 16.7 | |||||||||||||
| XST80-160/185 | 18.5 | 25 | 39 | 38 | 36.8 | 36.7 | 33.8 | 28.8 | 23.5 | |||||||||||||
| XST80-200/220 | 22 | 30 | 48 | 47.5 | 45.5 | 43.5 | 41 | 32.5 | 24.5 | |||||||||||||
| XST80-200/300 | 30 | 45 | 60 | 59.5 | 58 | 57 | 54.5 | 47 | 40.5 | |||||||||||||
| XST80-250/370 | 37 | 50 | 71.5 | 70.5 | 67.5 | 65.5 | 61.5 | 49.5 | 38.5 | |||||||||||||
| XST80-250/450 | 45 | 61 | 80 | 80.5 | 78.5 | 76.5 | 73.4 | 63.2 | 51 | |||||||||||||
| XST80-250/550 | 55 | 75 | 92.5 | 93.5 | 91.2 | 89.8 | 86.8 | 77.6 | 68.3 | |||||||||||||
