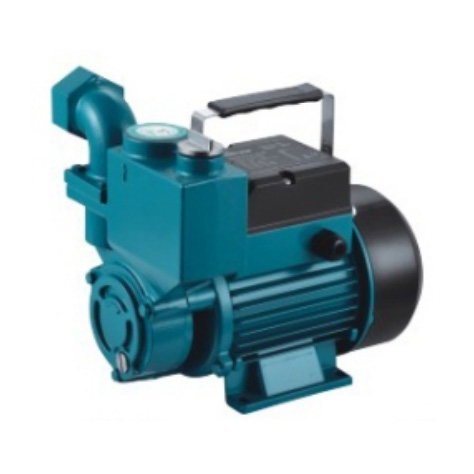

XWZB

APPLICATION

Can be used to transfer clean water or other liquids similar to water in physical and chemical properties

Suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.

PUMP

Cast iron pump body and support under special anti-rust treatment.

Brass / Stainless steel / PPO impeller

AISI 304 shaft

oMax. Liquid temperature:+60℃

MOTOR

C&U Bearing

Motor with copper winding

Built-in thermal protector for single phase motor

Insulation class :B/F

Protection class :IP44 /IP54

Max. Ambient temperature+40℃

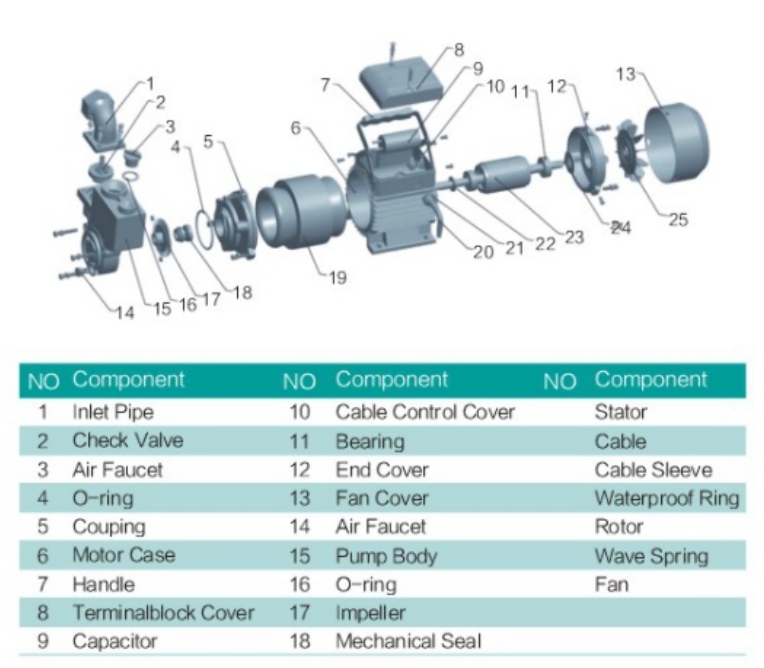

EXPLOSION PATTERN

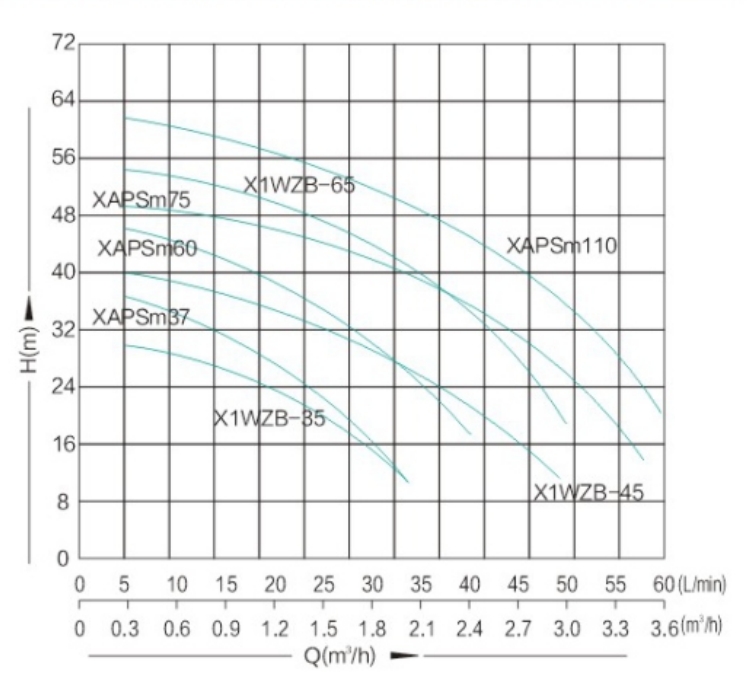

HYDRAULIC PERFORMANCE CURVES
