Application
Water supply: Pressure boosting for main pipes and high-rise buildings
Industrial pressure boosting:Water system,cleaning system,high pressure washing system and firefighting system
Pressure boosting for pressure tank, sprinkling irrigationand trichling irrigation
Air conditioner, cooling system and industrial cleaning Features
Economic vertical multistage pumps
Applicable for a wide scope of different temperatures,flow rates and pressure ranges
Water inlet and outlet can be rotated for proper assemblyin accordance with installation requirement
Easy installation and maintenance.Advanced hydraulicmodel design, featuring stable operation and high efficiency
Cast iron water inlet and outlet with special anti-rusttreatment
High-strength engineering plastic flow passage componentsReliable stainless steel welded shaft Working Conditions
Liquid temperature:+5C~75C
Max.ambient temperature:+40C
Max.operating pressure:15 bar
Altitude:up to1000m
Standard voltage:Single-phase:220~240V/50HzThree-phase:380-415V/50HZ

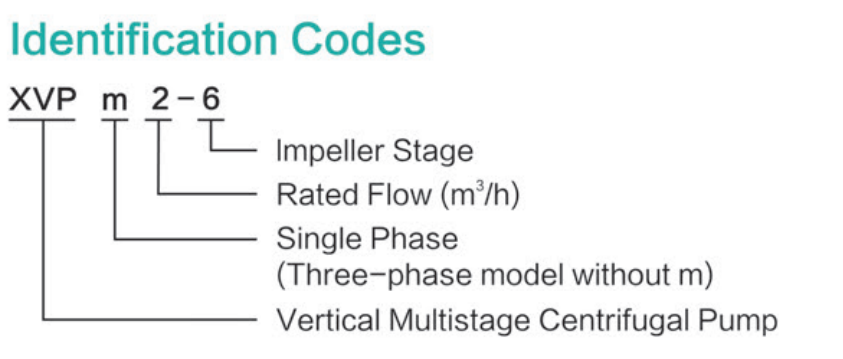

Identification Codes
